Our tool shop - where 15 persons work on 920 m2 - undertakes to deal with external orders presently as well. We undertake to design and manufacture tools, machine special parts, and produce single-purpose machines. For manufacturing small and large series, we also have CNC machining centres, and CNC lathe, as well as 3D design and machining programs (Solid Edge V20, EdgeCam 9.75).

For several years we have supplied machined parts to Aprítógépgyár RT (since 2007 RUUKKI Tisza ZRT), KRÖLL Hungária KFT,  SAMSUNG RT, Ganz Transelektro Villamossági ZRt, and INTEC Austria GmbH, which provides representation for several big Austrian, and German companies (BÖHLER, PEWAG, KWB, JOOTECHNIK).

We have produced different jet-moulds, plate processing tools, and single-purpose machines to Dometic RT, NCT KFT, ELECTROLUX Magyarország KFT, Mezőgép RT, Ilpea Profext KFT, VILL-BAU KFT, Coiver Hungária KFT, BUNDY KFT, Dencs KFT, TERMOTECHNIKA KFT, and also to Slovakia, to TECHIMPEX SLOVAKIA s.r.o. For the past year we have continuously provided tools manufacturing, repairing, and modifying as well for Ferropress KFT, which delivers plate parts to several multinational companies in Hungary, mainly to Samsung.

The halls on our site were built with steel construction design, and have a total area of almost 3000 m2. Furthermore, we constructed the steel construction hall of VILL-BAU KFT, in Budapest as well.

Our company initiated the MSZ EN ISO 9001:2001 quality-insurance system in 2005 and 2010 the MSZ EN ISO 9001:2009 too.

Working center
Euromill-610 L
Control: NCT 100
Table size(mm): 800 x 450
Range strokes XYZ: 610 x 460 x 510
Speed (rot/min): 0-12000
Main propulsion effect (kW): 7
Space of tools(pcs): 16
Year: 2007

CNC turn-bench
Topper TNL 100AL
Control: NCT 100
Peak distance (mm): 600
Turning Ø above the bed (mm): 420
Turning Ø abova the slide (mm): 320
Speed (rot/min): 40-4500
Main propulsion effect (kW): 20
Space of tools (pcs): 12
Year: 2006

CNC huzalszikraforgácsoló
Mitsubishi DWC 100 SA
Control: Mitsubishi
Motion dominion XYZ: 450 x 300 x 250
Year: 1993

Tömbszikraforgácsoló
Charmilles FORM 2-LC
Motion dominion XYZ: 300 x 180 x 400
Year: 1993

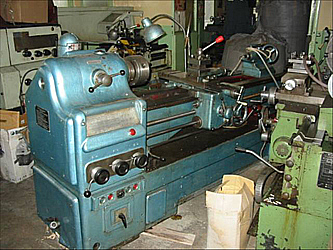

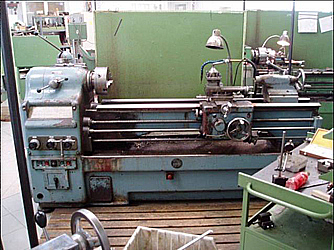

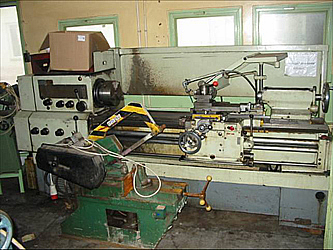

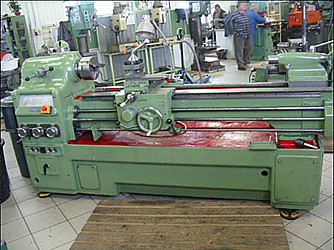

Traditional turn-bench
SZGM E 400 M
Peak distance (mm): 1500
Turning Ø above the bed: 400 mm

Traditional turn-bench
SZGM E 400 M
Peak distance (mm): 1500
Turning Ø above the bed: 400 mm

Traditional turn-bench
SZGM EE 400
Peak distance (mm): 1000
Turning Ø above the bed: 400 mm

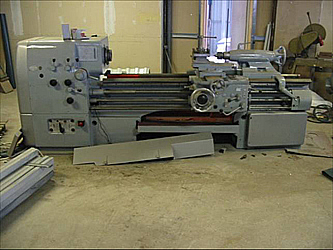

Traditional turn-bench
TOS TRENCIN SUI 63
Peak distance (mm): 3000
Turning Ø above the bed: 630 mm

Traditional turn-bench
SZGM EE 250-01
Peak distance (mm): 750
Turning Ø above the bed: 250 mm

Traditional milling machine
TOS FNGJ 32
Motion dominion XYZ: 600 x 400 x 400

Traditional milling machine
TOS FNGJ 32
Motion dominion XYZ: 600 x 400 x 400

Traditional milling machine
PRVOMAJSKA G-05B
Motion dominion XYZ: 700 x 300 x 450

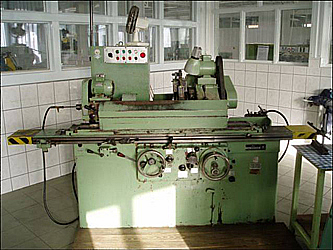

Point grinding machine
TOS HOSTIVAR BU16
Peak distance (mm): 500

Maximum grinding diameter (mm): 160

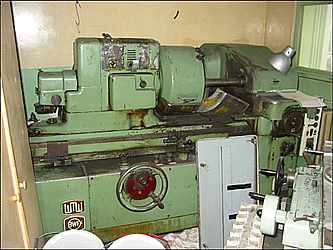

Point grinding machine
TOS HOSTIVAR 2 UD
Peak distance (mm): 750

Maximum grinding diameter (mm): 300

Flat grinding machine
TOS BN 102B
The firm has 2 pieces.

Flat grinding machine
JOTES SPD 30B
Motion dominion XY: 1000 x 300

Flat grinding machine
TOS ZVL BRH 20A
Motion dominion XY: 600 x 200

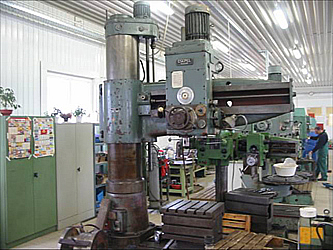

Drilling machine
CSEPEL OF22

Drilling machine
ZMM SLIVEN OK 203

Ribbon

Energetic chopper

Our firm has been making tools, rough-turning special components and making special tools for years. We have the 3D planning and processing program (Solid Edge V20, EdgeCam 9.75). The following video shows you a process of a tool, how to make and what kind of components we need to reach the final product. Animation by Zoli.

Some examples:

Menu tray: From idea to execution.

Ornamental cache pot: From the planning to the working and 100% made product.

Plastic component and its reference drawing

Rough-turned components:

For 77 ELEKTRONIKA Ltd.		For INTEC Ausztria

Lathing head: For NCT Ltd., which works in nuclear power station in Paks.

Waiting for reconstruction: From Ferropress Ltd.

Our company initiated the MSZ EN ISO 9001:2001 quality-insurance system in 2005.

Address: 5100, Jászberény , Rigó str. 7., HUNGARY

Tel./Fax: + 00 36 57 415-220

Managing director:
Árpád Csizmadia
Tel.: + 00 36/30 9988718

e - mail: csizmadia@vnet.hu

_______magyarl@csizmadiakft.hu

web: www.csizmadia.hu

or www.konyhafelszereles.com
